Specifications

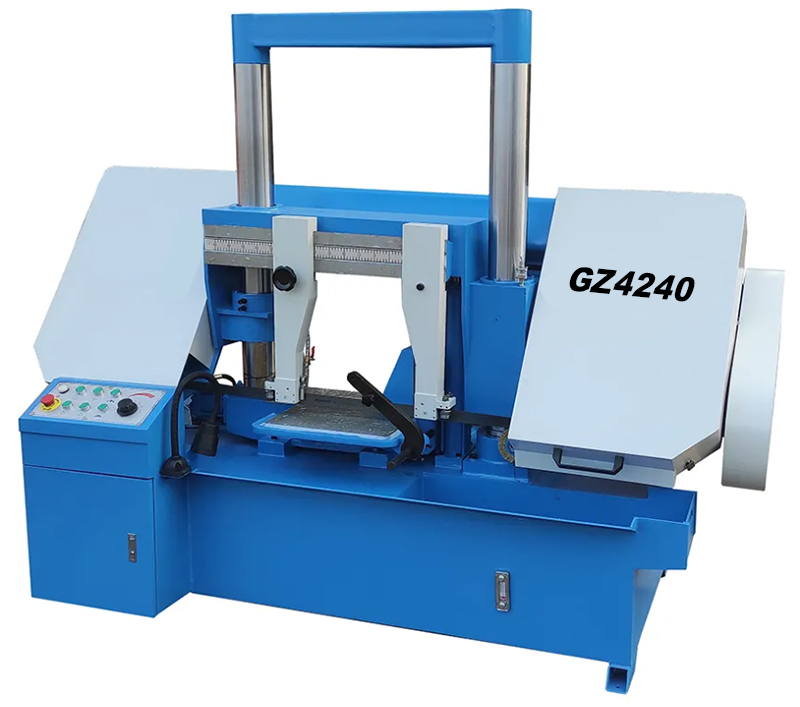

GZ4240

H400A

G400

Max.cutting(mm)

●400■400W×400H

●400■400W×400H

0°●400■400W×400H

45°●300■300W×300H

Saw blade speed(m/min)

27/45/69

27/45/69

27/45/69

Saw blade size(mm)

41×1.3×5000

41×1.3×5000

41×1.3×5000

Main motor(kw)

4

4

4

Hydraulic motor(kw)

1.1

1.5

1.5

Cooling motor power(kw)

0.09

0.09

0.04

Single feed length(mm)

/

500

/

Feed precision(mm)

/

±0.5

/

Main transmission structure

Worm gear transmission

Band saw blade tensioning method

Manual

Working clamping mode

Hydraulic vice

Cleaning

Wire brush & flood coolant

Dimensions(mm)

2400×1300×1800

2650×2380×1800

2870×1880×2220

Specifications

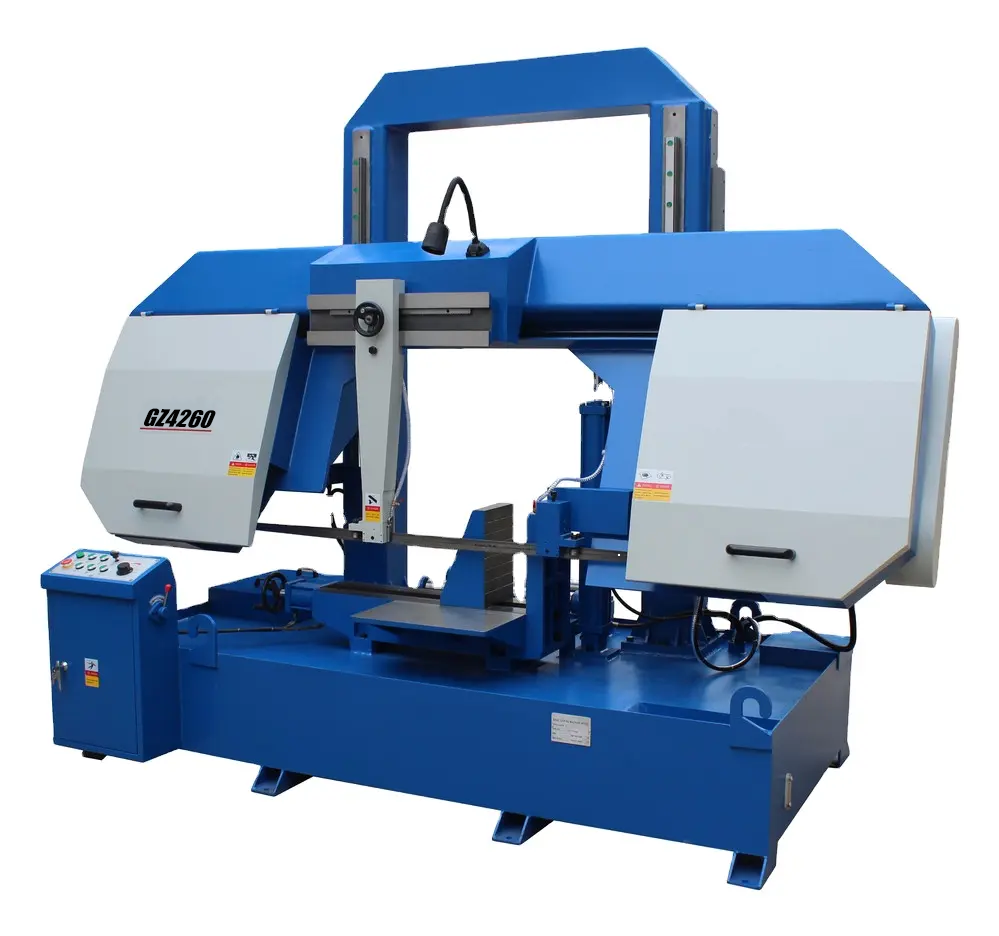

GZ4260

H600A

G600

Max.cutting(mm)

●600■600W×600H

●600■600W×600H

0°●600■600W×600H

45°●450■450W×450H

Saw blade speed(m/min)

27/45/69

27/45/69

27/45/69

Saw blade size(mm)

54×1.6×6640

54×1.6×6640

54×1.6×6900

Main motor(kw)

5.5

5.5

7.5

Hydraulic motor(kw)

1.5

1.5

1.5

Cooling motor power(kw)

0.125

0.125

0.125

Single feed length(mm)

/

500

/

Main transmission structure

Worm gear transmission

Band saw blade tensioning method

Manual

Working clamping mode

Hydraulic vice

Cleaning

Wire brush & flood coolant

Weight(kg)

3200

3600

3600

Dimensions(mm)

3250×1400×2300

3250×2550×2550

3300×2100×2550

Specifications

GZ4280

GZ42100

Max.cutting(mm)

●800■800W×800H

●1000■1000W×1000H

Saw blade speed(m/min)

20-80 Frequency control

20-80 Frequency control

Saw blade size(mm)

54×1.6×8377

67×1.6×10222

Working clamping mode

Worm gear transmission

Main transmission structure

Hydraulic vice

Band saw blade tensioning method

Manual

Hydraulic

Cleaning

Wire brush & flood coolant

Main motor(kw)

7.5

11

Hydraulic motor(kw)

1.5

2.2

Cooling motor power(kw)

0.125

0.125

Packaging weight(kg)

6700

8000

Packaging size(mm)

4100×2050×2850

4700×1840×3060
