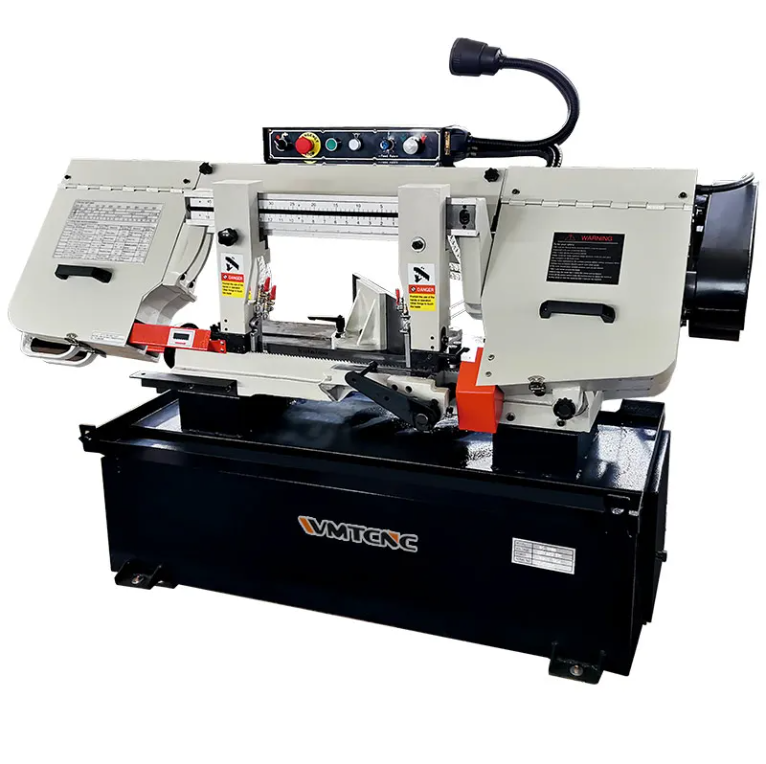

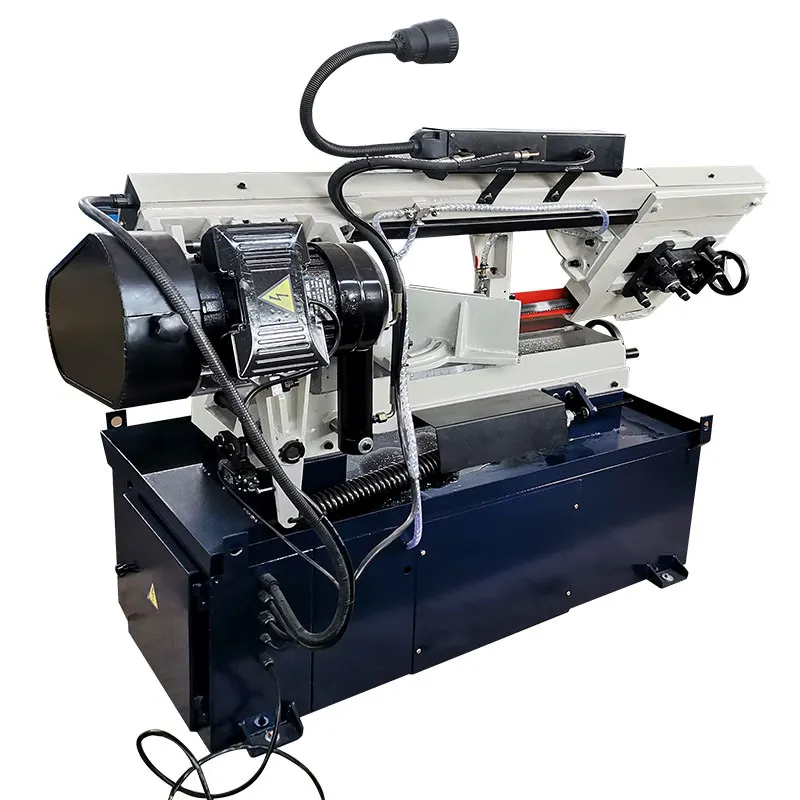

Small Band Sawing Machine BS1018B



Band Saw Cutting Machine BS1018B Main Features:

1. 10" metal cutting band saw machine, 10" round maximum capacity at 90°.
2. Vertical force controlled by hydraulic cylinder.
3. Strong structure for big capacity cutting.

4. 2 hp motor runs on single-phase power or 3 phase power.

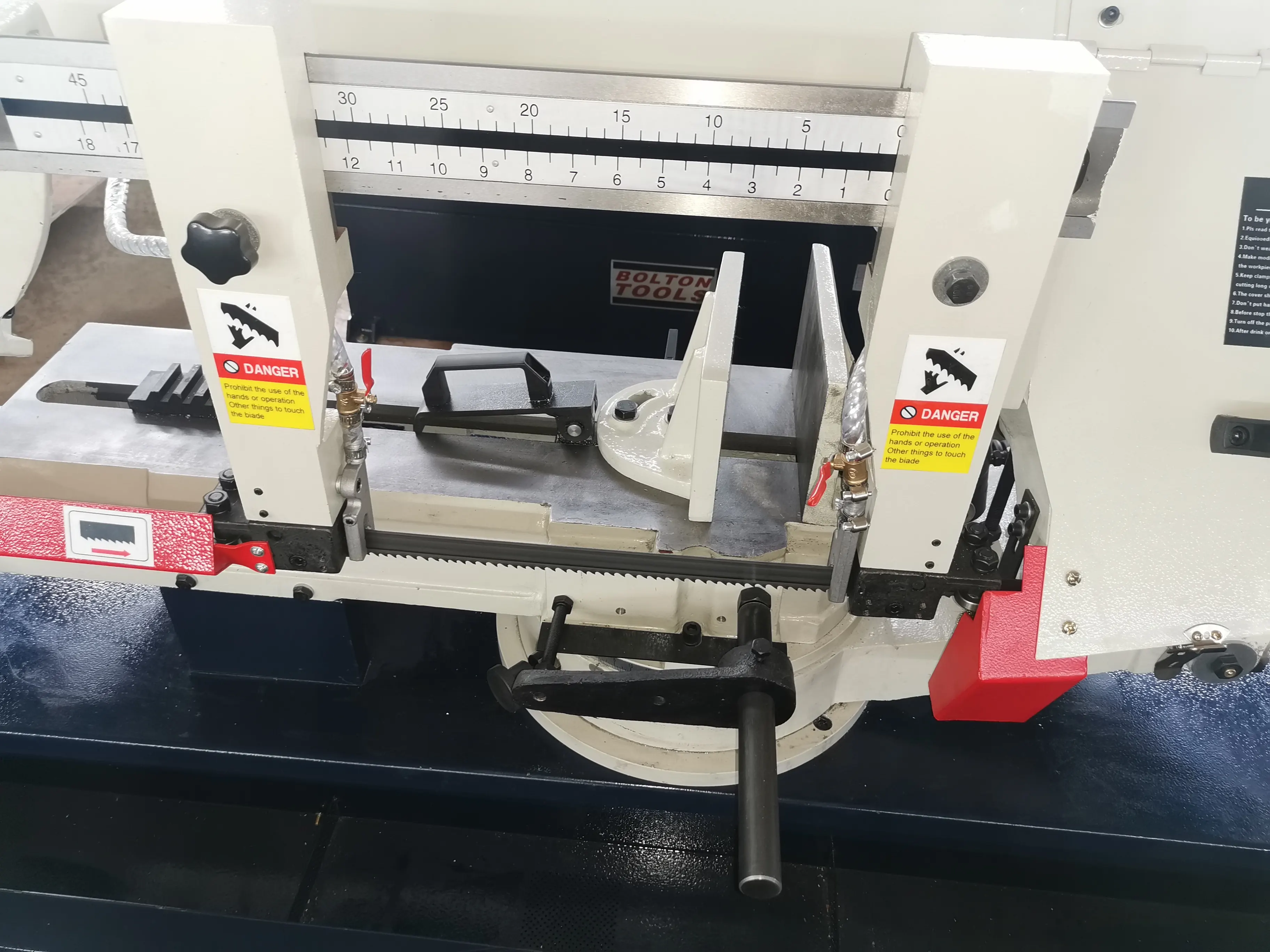

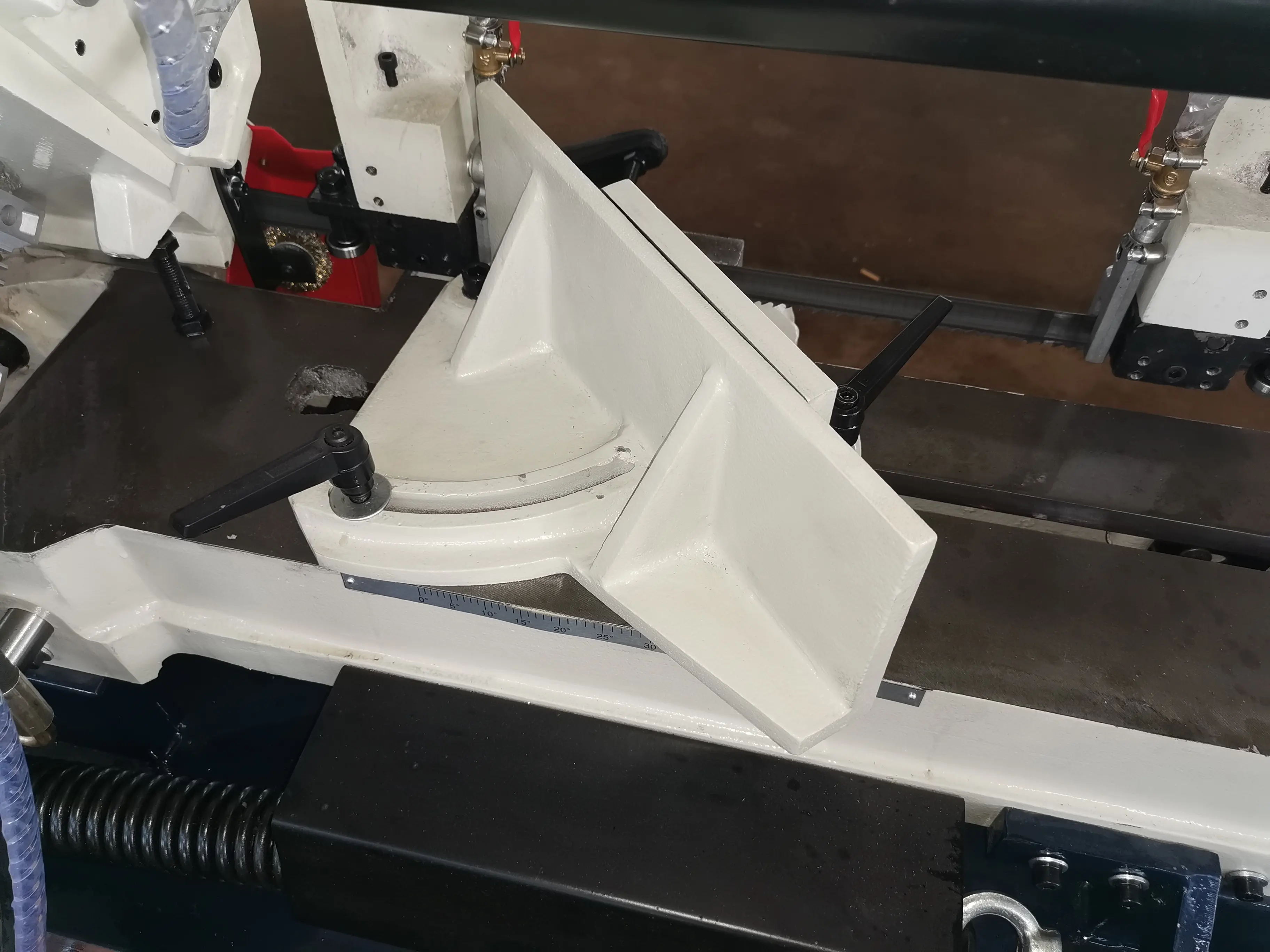

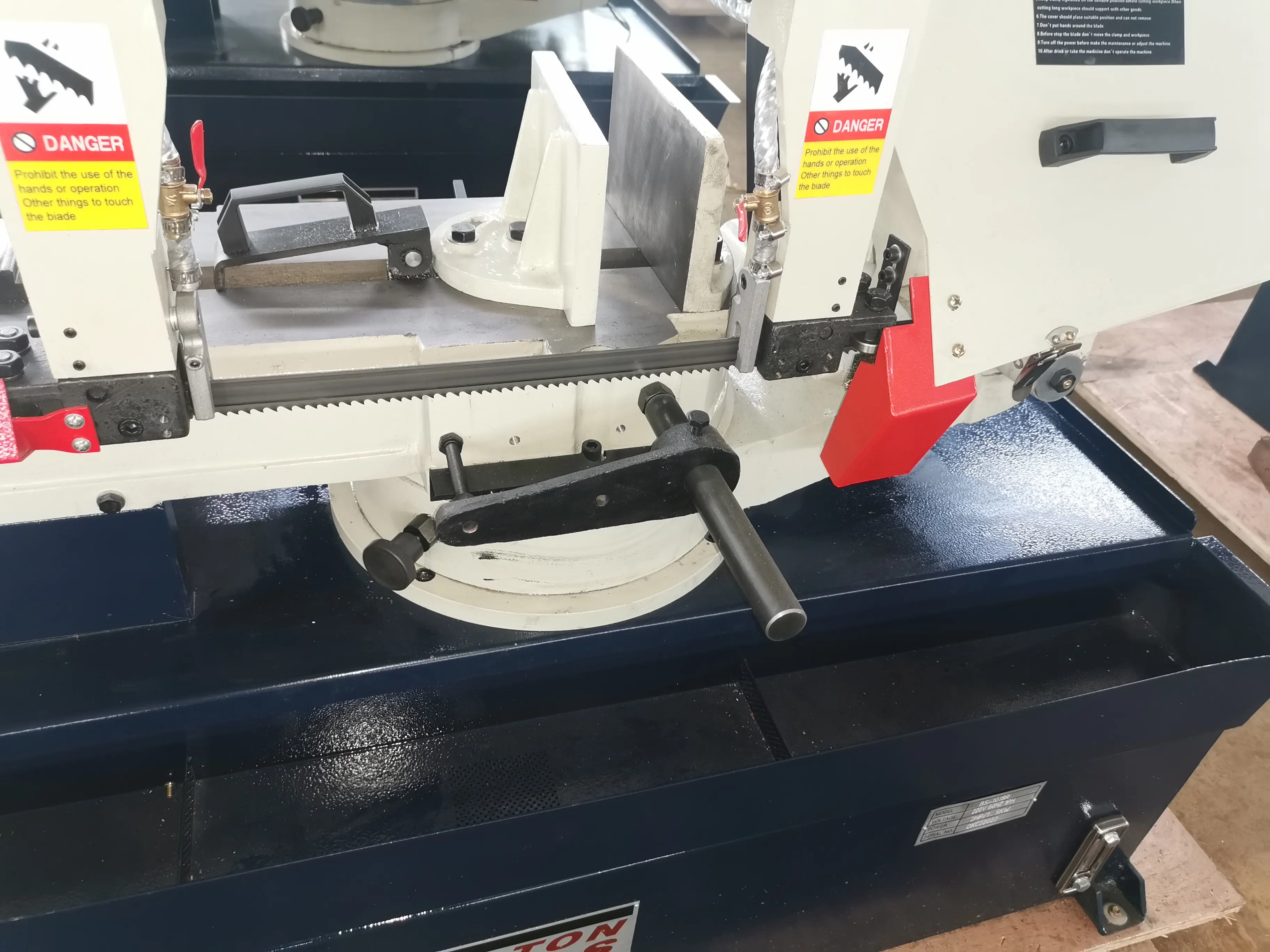

5. Vise miters up to 45°.

6. 4 cutting speeds allow you to fine-tune the saw for better cut quality.

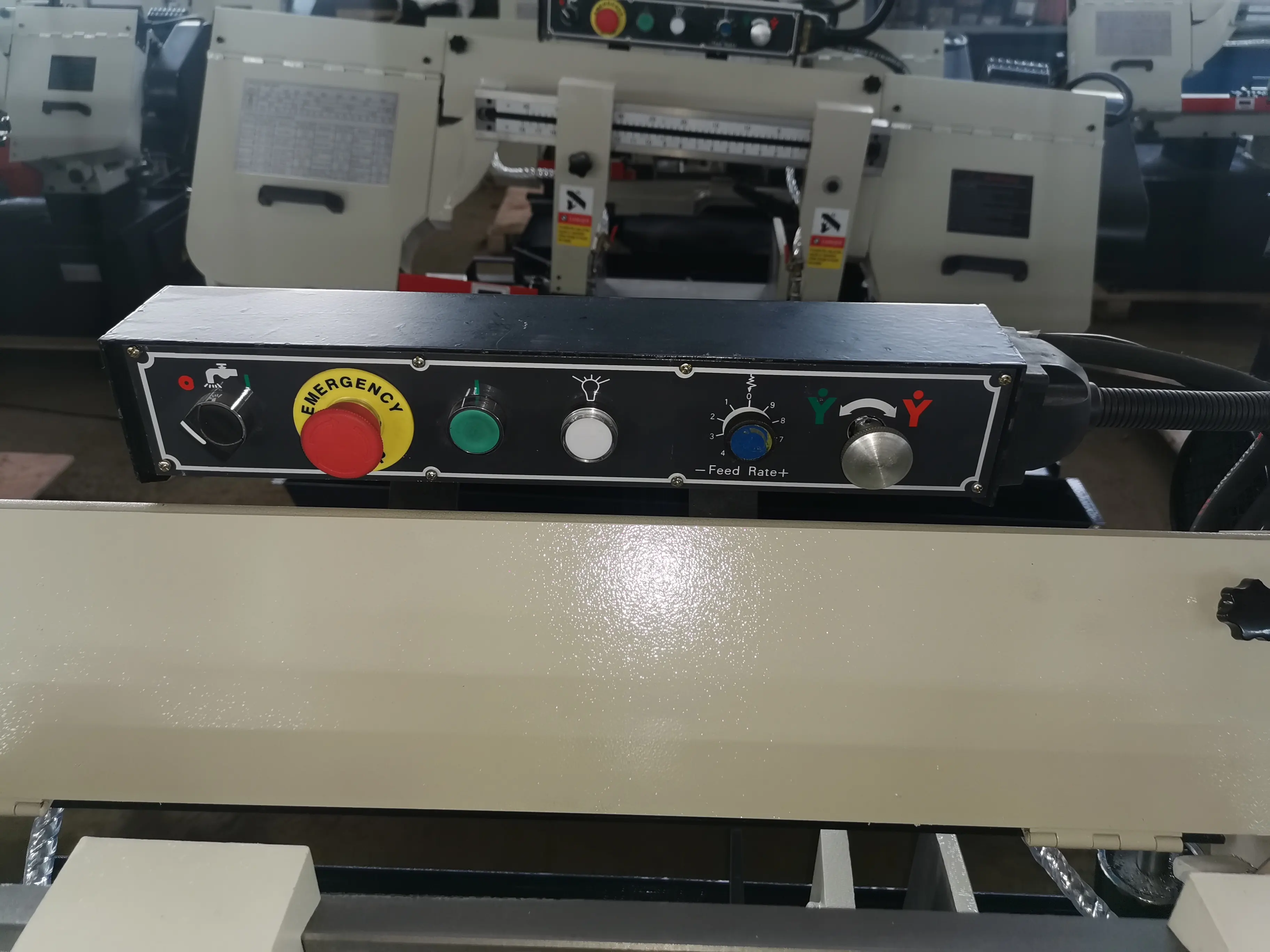

7. Hydraulic descent pressure controlled by a panel located on top of the bow.

8. Cuts almost anything that you can throw at it, including many different shapes and profiles of metal.

9. Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe.


Specifications

BS-1018B

Capacity

Circular@90°

254mm(10)

Rectangular@90°

127x457mm(5x18)

Circular@45°

150mm(6)

Rectangular@45°

150x190mm(6x7.5)

Blade speed

@60HZ

35,60,88,115MPM

@50HZ

29,50,73,95MPM

Blade size

27x0.9x3280mm

Motor power

1.5kw 2HP(3PH)

Drive type

V-Belt

Packing size

1830x830x1150mm

N.W./G.W.

310/385kgs
