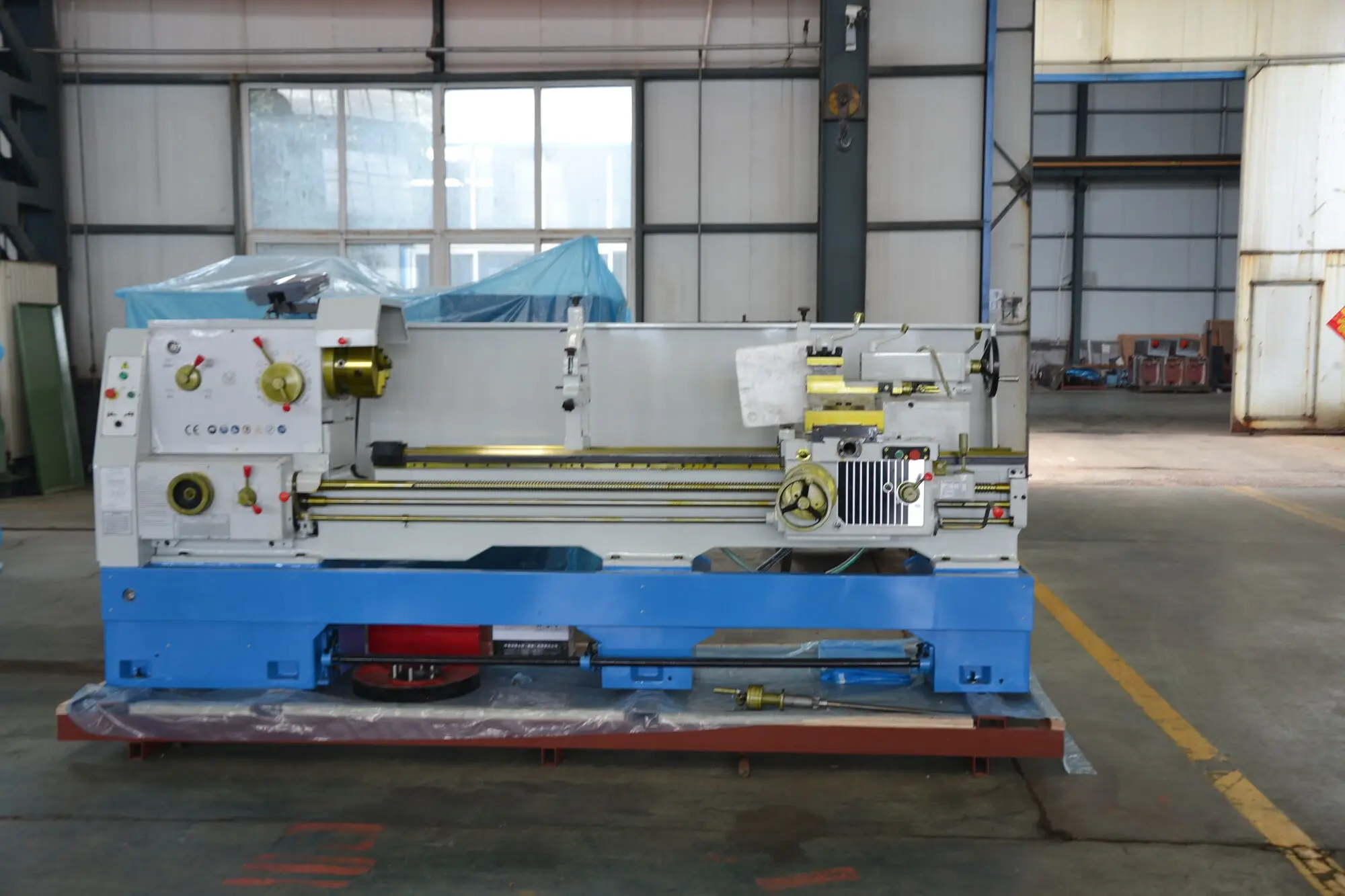

Specifications for C6150/C6250 Lathe Machine

Capacity

Max.Swing over bed

500mm

Max. rotating diameter

330mm

Center distance

750/1000/1500mm

Spindle hole

52mm

For C6250

Maximum workpiece rotation diameter in the saddle slot

710mm

Effective length of front saddle of faceplate

200mm

Spindle

Spindle nose

ISO-C6

Spindle tap

MT6

Spindle speeds(Number)

36-1400rpm (12 Steps)

Feed

Metric threads range(Kinds)

0.5-14mm (18 Kinds)

Inch threads range(Kinds)

2-40/inch (28 Kinds)

Moudle threads range(Kinds)

0.25-3.5mπ (17 Kinds)

Compound rest travel

150mm

Cross slide travel

180mm

Cross-section size of toolshank

20×20mm2

Tailstock

Dia.of tailstock sleeve

75mm

Taper of tailstock sleeve

MT5

Travel of tailstock sleeve

160mm

Main motor power

5.5KW

Machine size

(L*W*H mm)

Overall dimensions for750mm

2100×1150×1550mm

Overall dimensions for1000mm

2350×1150×1550mm

Overall dimensions for1500mm

2850×1150×1550mm

Weight(kg)

Weight for 750mm

1500kg

Weight for 1000mm

1600kg

Weight for 1500mm

1800kg
