Product Categories
|
Specifications |
Units |
CK6160 |
|
Swing over bed |
mm |
600 |
|
Swing over cross slide |
mm |
395 |
|
Guide width |
mm |
400 |
|
Max.Work piece Length |
mm |
1000/1500/2000 |
|
Spindle bore |
mm |
82(Optional:130) |
|
Spindle bore taper |
- |
A2-8/A2-11 |
|
Spindle speed steps |
- |
stepless |
|
Spindle speed range |
rpm |
1800/800 |
|
Turret/tool post |
- |
Electric 4 position |
|
Tool size |
mm |
25 x 25 |
|
X axis travel |
mm |
320 |
|
Z axis travel |
mm |
1000/1500/2000/3000 |
|
X axis rapid traverse |
mm/min |
6000 |
|
Z axis rapid traverse |
mm/min |
8000 |
|
Tailstock quill diameter |
mm |
75 |
|
Tailstock quill taper |
- |
MT5 |
|
Tailstock quill travel |
mm |
140 |
|
Main spindle motor |
kw |
7.5 |
|
Weight for 1000 |
kg |
2500 |
|
Weight for 1500 |
kg |
3000 |
|
Weight for 2000 |
kg |
3500 |
|
Dimension for 1000 |
mm |
2700x1500x1690 |
|
Dimension for 1500 |
mm |
3200x1500x1690 |
|
Dimension for 2000 |
mm |
3700x1500x1690 |
STANDARD CONFIGURATION

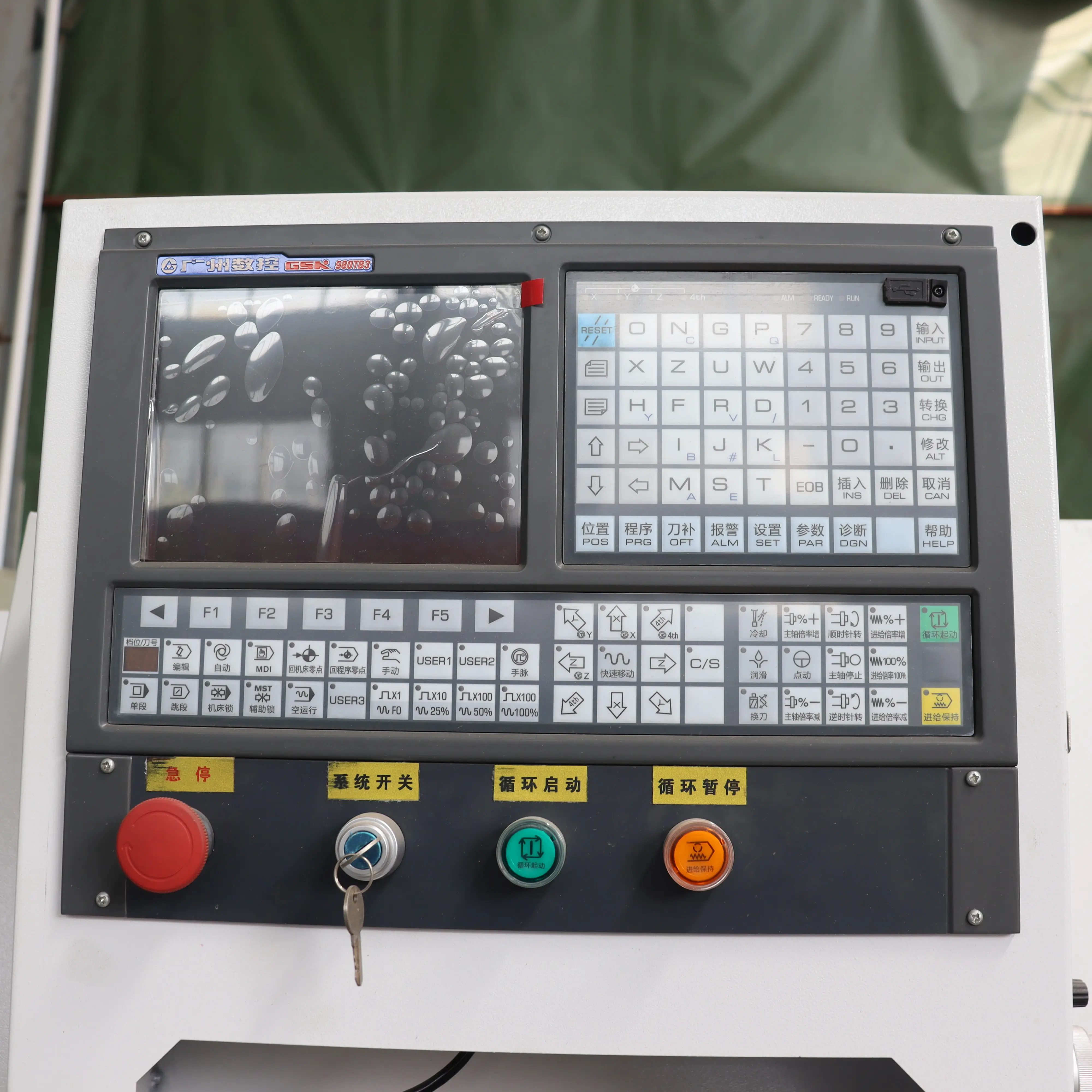

1) System:GSK, servo motor and drive.

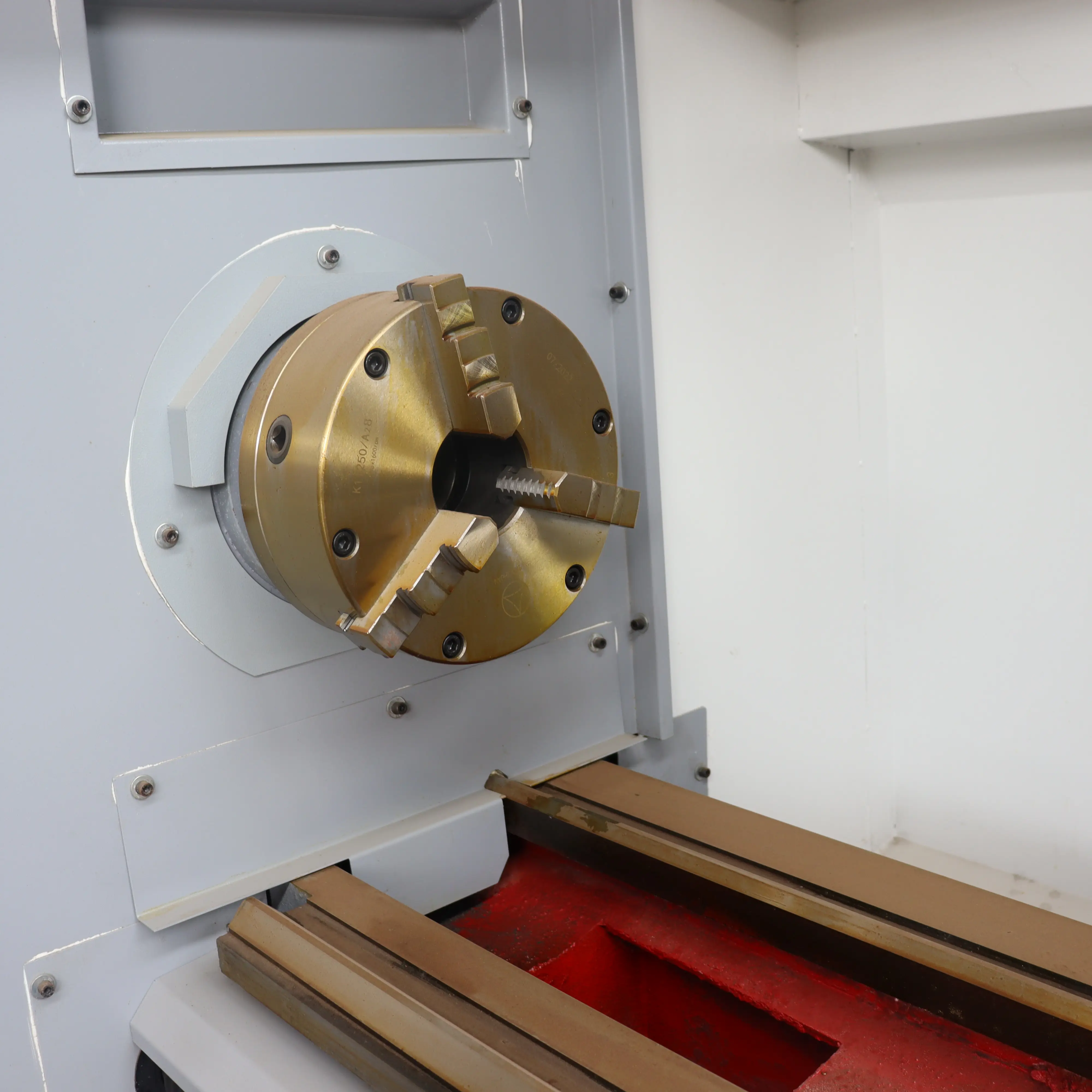

2) Manual 3-jaw chuck.
3) Four station electric tool post .
4) Manual tailstock;
5) Cooling system.
6) Lighten system；

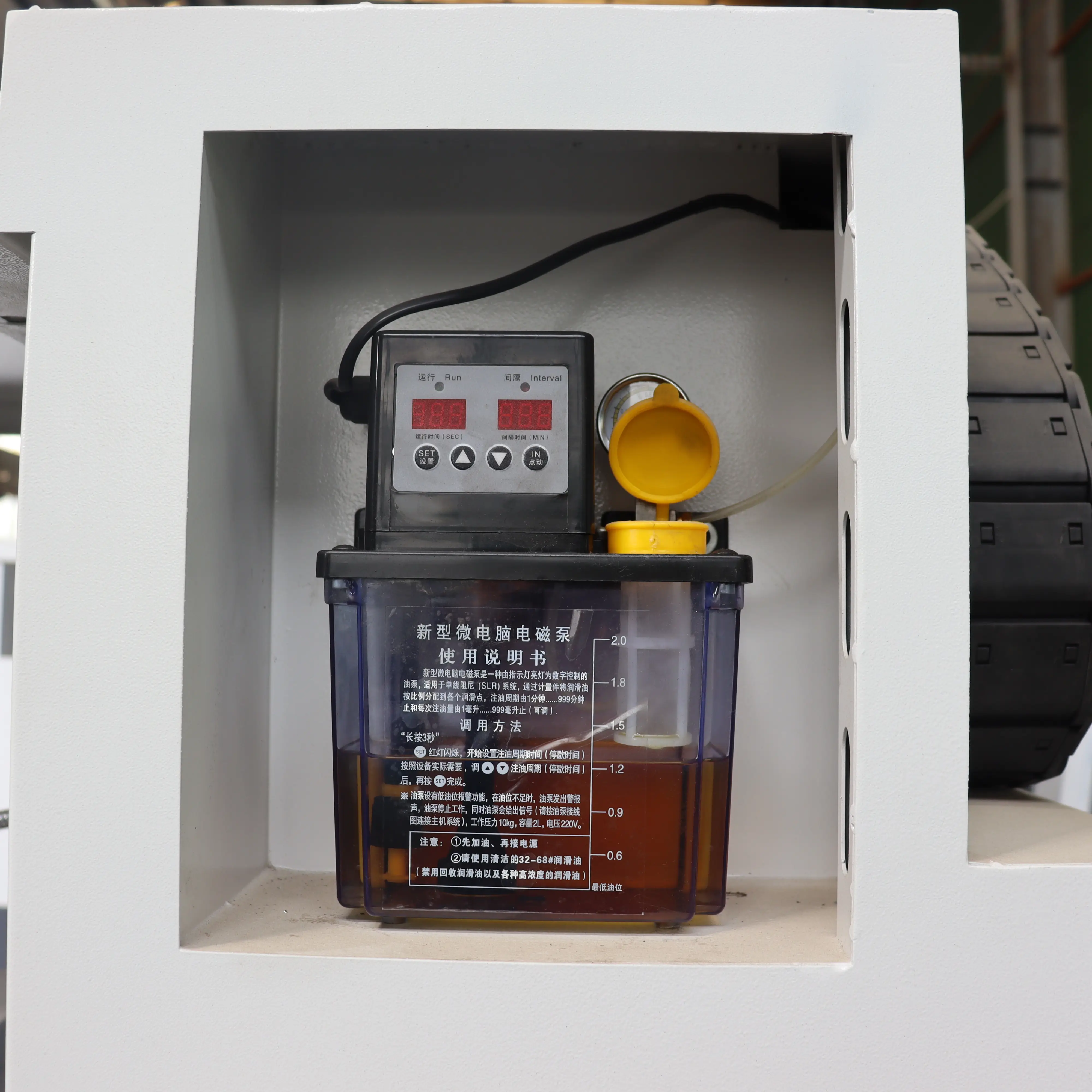

7) Automatic lubrication system.
OPTIONAL CONFIGURATION
1) CNC system: Siemens, Fanuc, KND, etc。
2)Hydraulic chuck, pneumatic chuck .
3)Hydraulic tailstock, pneumatic tailstock.
4) 6/8station electric tool post.
5)Automatic bar feeder.
