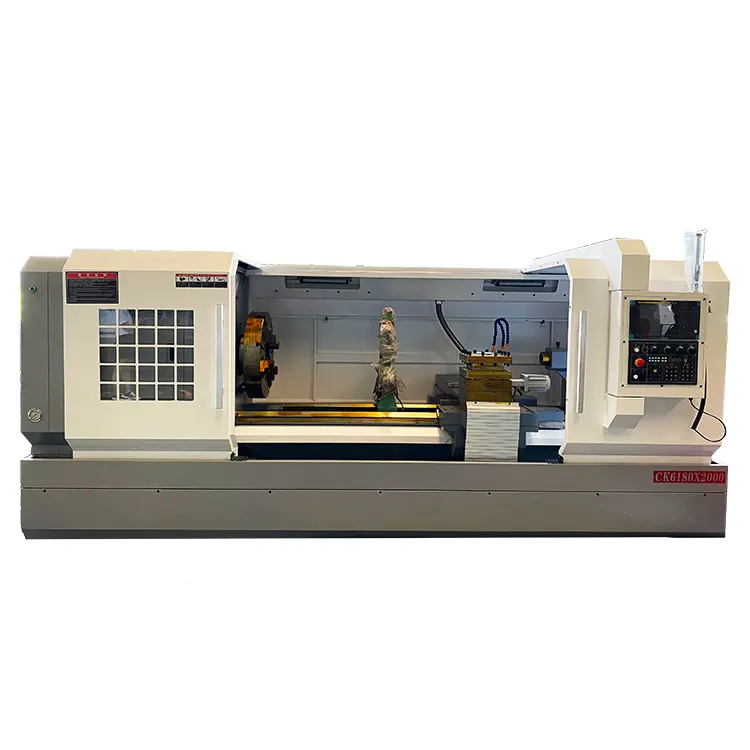

SPECIFICATIONS |
Units |
CK6180 |
CK6180 |
Manual |
HYD. |
||
Swing over bed |
mm |
800 |
|
Swing over cross slide |
mm |
520 |
|
Distance between centers |
mm |
1000/1500/2000/3000/4000/5000/6000 |
|
Guideway width |
mm |
550 |
|
Max. load capacity |
T |
3 |
|
Spindle bore |
mm |
104 |
|
Spindle bore taper |
- |
Metric φ120/MT5 |
|
Spindle nose type |
- |
C11 |
|
Spindle speed steps |
- |
VF. 3 steps |
HYD. 4 steps |
Spindle speed range |
rpm |
10-1000 |
17-1000 |
Chuck |
mm |
φ315 3-jaw manual |
|
Turret/tool post |
- |
Electric 4 position |
|
Tool size |
mm |
32×32 |
|
X axis travel |
mm |
420 |
|
Z axis travel |
mm |
850/1350/1850/2850/3850/4850/5850 |
|
X axis rapid traverse |
mm/min |
4000 |
|
Z axis rapid traverse |
mm/min |
6000 |
|
Tailstock quill diameter |
mm |
φ100 |
|
Tailstock quill taper |
- |
MT5 |
|
Tailstock quill travel |
mm |
250 |
|
Main spindle motor |
kw |
11 |
|
Coolant pump motor |
kw |
0.125 |
|
Weight for 1000 |
kg |
3900 |
|
Weight for 1500 |
kg |
4300 |
|
Weight for 2000 |
kg |
4700 |
|
Weight for 3000 |
kg |
5500 |
|
Weight for 4000 |
kg |
6300 |
|
Weight for 5000 |
kg |
7100 |
|
Weight for 6000 |
kg |
7900 |
|

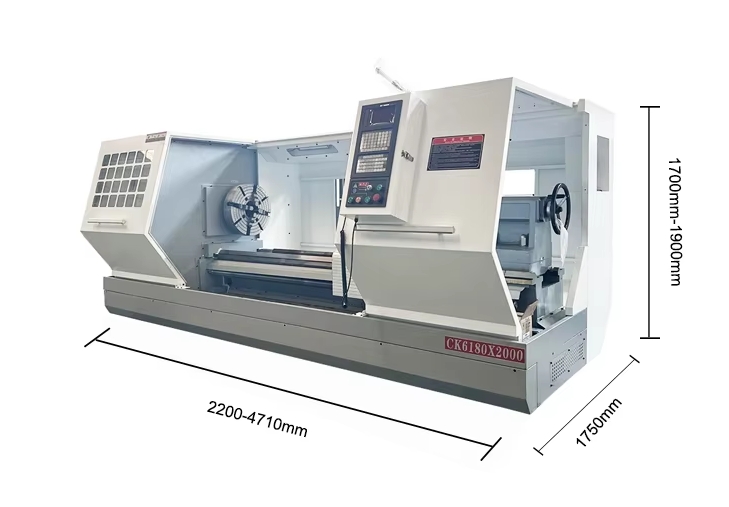

Dimension for 1000 |
mm |
3300x1850 x1900 |
|
Dimension for 1500 |
mm |
3800x1850 x1900 |
|
Dimension for 2000 |
mm |
4300x1850 x1900 |
|
Dimension for 3000 |
mm |
5300x1850 x1900 |
|
Dimension for 4000 |
mm |
6300x1850 x1900 |
|
Dimension for 5000 |
mm |
7300x1850 x1900 |
|
Dimension for 6000 |
mm |
8300x1850 x1900 |
STANDARD CONFIGURATION
1) System:GSK, servo motor and drive.
2) Manual 3-jaw chuck.
3) Four station electric tool post .
4) Manual tailstock;
5) Cooling system.
6) Lighten system;
7) Automatic lubrication system.
OPTIONAL CONFIGURATION
1) CNC system: Siemens, Fanuc, KND, etc。
2)Hydraulic chuck, pneumatic chuck .
3)Hydraulic tailstock, pneumatic tailstock.
4) 6/8station electric tool post.
5)Automatic bar feeder.
6)4 jaw chuck
