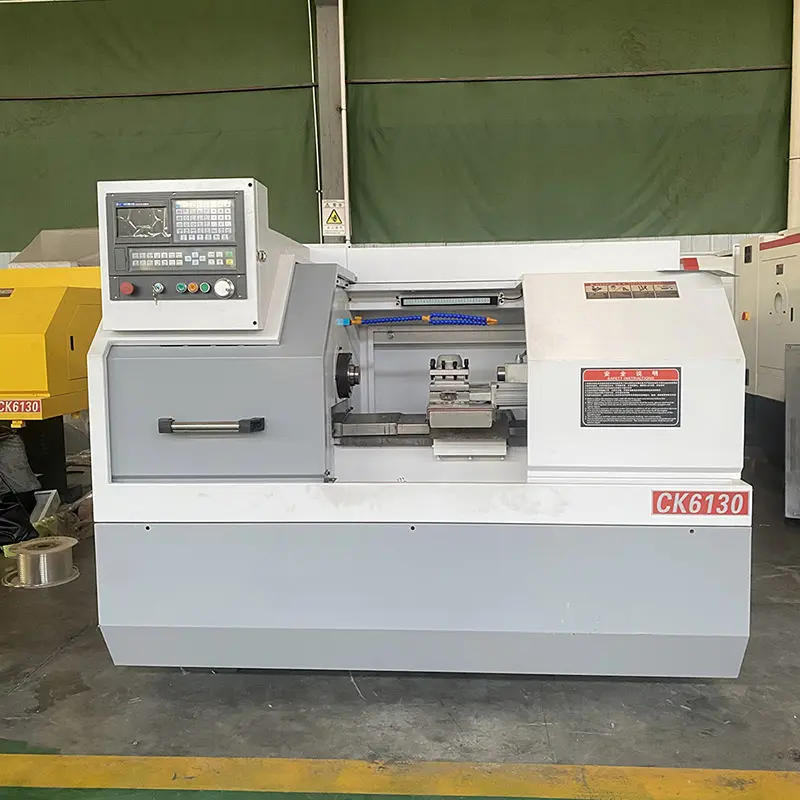

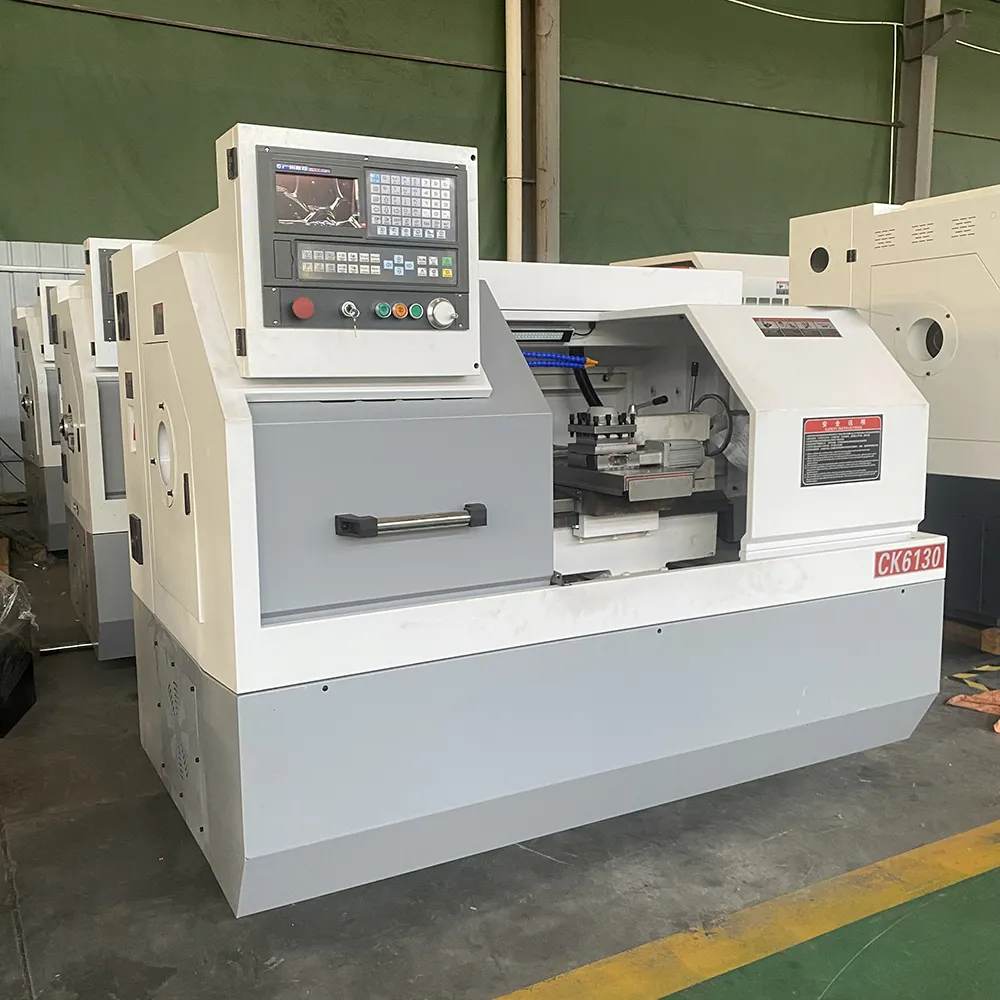

CNC Lathe machine CK6130

Product Categories

Please note: Due to the adaptability of the web page, you may not be able to see the parameters on your phone.

Please turn your phone sideways so that you can see the parameters.

ITEMS			UNIT	CK6130
1.	Max.swing diameter over bed		mm	Φ300
2.	X axis travel		mm	Φ160
3.	Z axis travel		mm	230
4.	Swing over cross slide		mm	Φ100
5.	Distance between centers		mm	350
6.	Maximum turning length		mm	230
7.	Center height	From the bed	mm	150
8.	Center height	From the ground	mm	1065
9.	Spindle bore		mm	Φ48
10.	Bar capacity		mm	Φ45
11.	Hollow chuck rod bore		mm	Φ40
12.	Spindle nose types			A2-5
13.	Chuck		mm	Chuck head/Φ160 manual chuck（Optional）
14.	Spindle bore taper		No	Chuck head
15.	Spindle max speed		rpm	2500
16.	Tailstock quill diameter		mm	Φ52
17.	Tailstock quill taper		No	MT4#
18.	Tailstock quill travel		mm	80
19.	Tailstock types			Manual
20.	Electric tool position		pc	4
21.	Tool size		mm	20×20(4 position)
22.	Screw model	X axis	mm	FDC2506-P3
22.	Screw model	Z axis	mm	FDC3210-P3
23.	X/Z axis rapid traverse		m/min	6/10
24.	X axis travel		mm	280
25.	Minimum setting unit		mm	0.001
26.	Main motor power		kw	4
27.	Total power supply		kw	10
28.	Machine weight		kg	1700
29.	Overall dimension		mm	2200×1160×1620

Product Details

CNC lathe is one of the widely used CNC machine tools. CK6160 is mainly used for cutting internal and external cylindrical surfaces of shaft parts or disk parts, internal and external conical surfaces with arbitrary cone angles, complex revolving internal and external curved surfaces, cylindrical and conical threads, etc., and can be used for slotting, drilling, reaming, reaming and boring, etc.

Features

This series lathe has compact structure, pleasant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.

Bedstock optimization design is suitable for turning disc and shaft parts. It can process straight line, arc, metric and British threads and multi-head threads. It can also be used for turning disc and shaft parts with complex shape and high precision.

The lathe guideway and saddle guideway adopt the hard guideway of special material. After high frequency quenching, they are super hard and wear-resistant, durable and have good processing accuracy.

The CNC system adopts GSK system and the famous ball screw and high precision screw bearing made in China.

The spindle with high precision spindle bearing group and precise assembly and dynamic balance test ensures high accuracy, low noise and strong rigidity of the spindle.

Forced automatic lubrication device is used for fixed-point quantitative lubrication of lead screw and guide rail at each lubrication point. When there is abnormal condition or insufficient oil, warning signals are automatically generated.

Standard accessories

System:GSK, servo motor and drive.

3-jaw manual chuck.

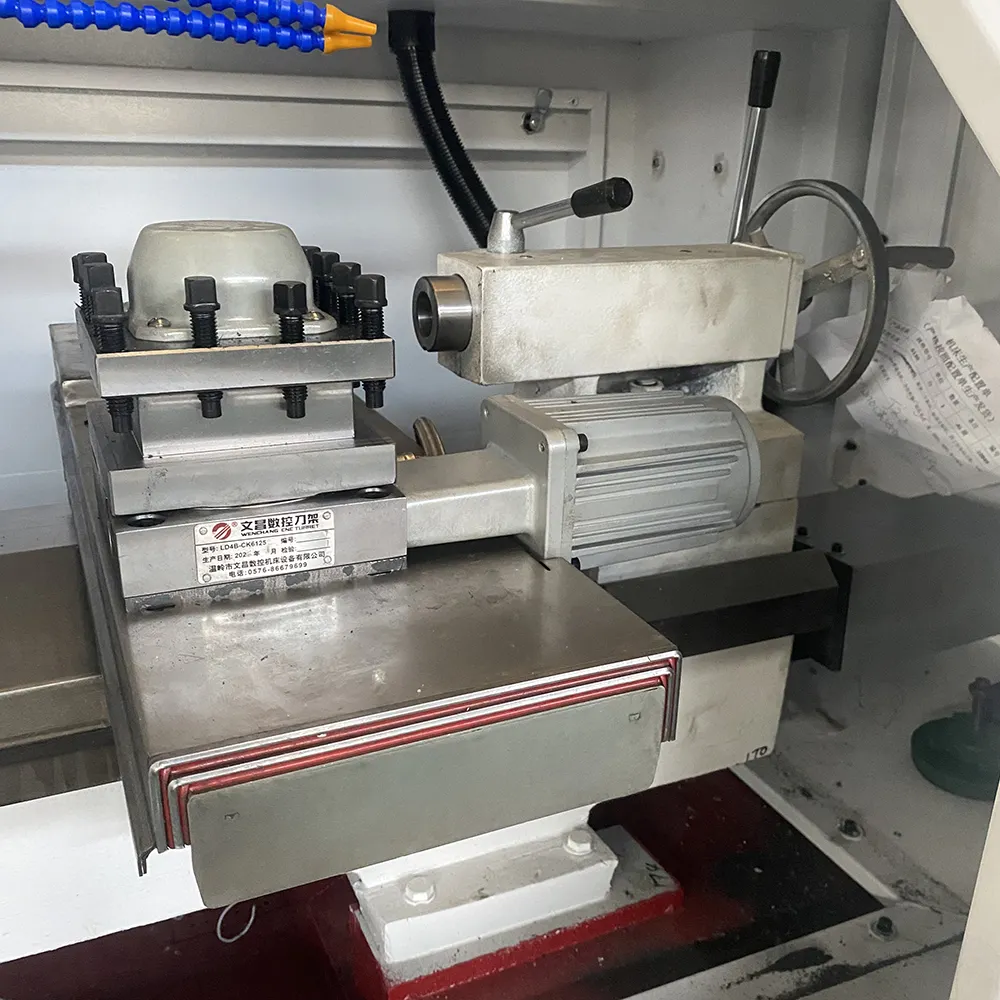

Four station electric tool post.

Manual tailstock.

Cooling system.

Lighting system.

Automatic lubrication system.

Optional accessories

CNC system: GSK, Siemens, Fanuc, KND, etc.

Hydraulic chuck, pneumatic chuck .

Hydraulic tailstock, pneumatic tailstock.
